1. Introduction to Laser Shaft Alignment

In the world of industry that exists today precision is everything. Shaft Alignment via laser enhances operational efficiency on rotating machinery and reduces down time and replacement costs of machinery. Shaft misalignment is a most common cause of vibration, bearing and seal failures, resulting in losses worth billions across manufacturing plants, oil & gas facilities, production and other heavy industries.

Panpush Laser Alignment has trained & certified engineers equipped with Easy-Laser measurement and alignment solutions, offering precision, reliability and ease when it comes to laser alignment services in UAE. Our alignment method minimizes downtime, increases energy efficiency and preserves the integrity of your assets.

Panpush  focuses specifically on laser alignment for rotating shafts in machinery such as pumps, turbines, compressors, and motors. By using laser alignment for your rotating machineries, industries can significantly reduce the risk of premature failure and costly repairs. The laser system provides realtime data, making it possible to perform alignments quickly and accurately. This continuous, live data allows for immediate corrective actions and helps ensure that all machinery operates within required tolerances.

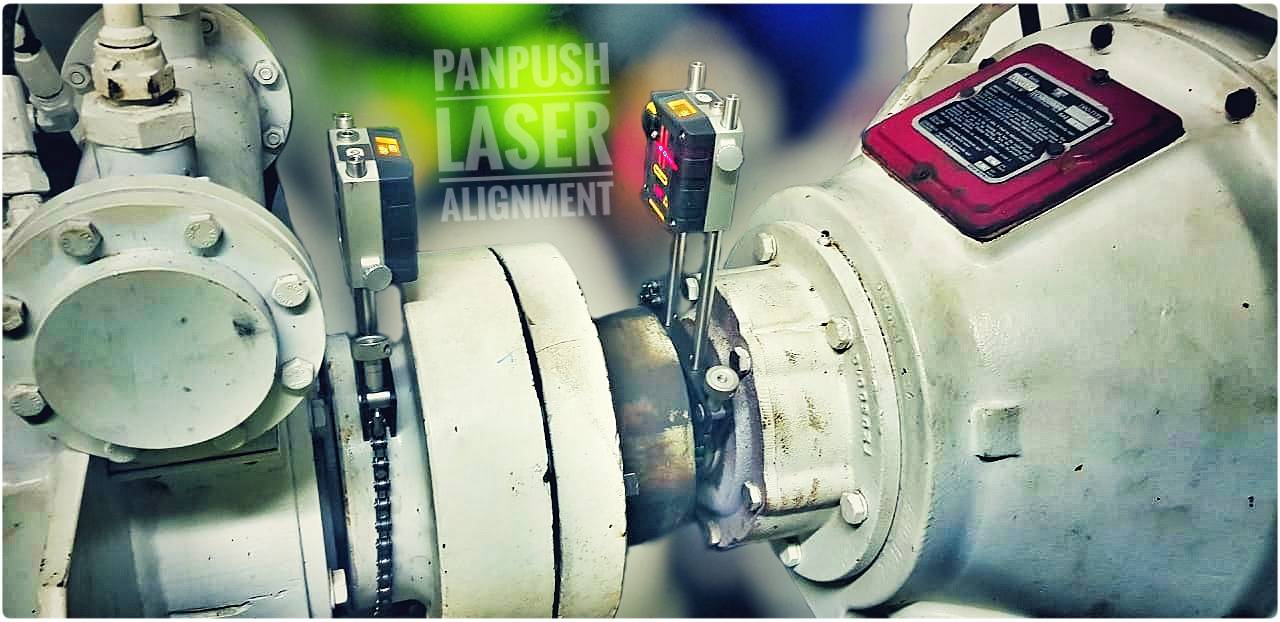

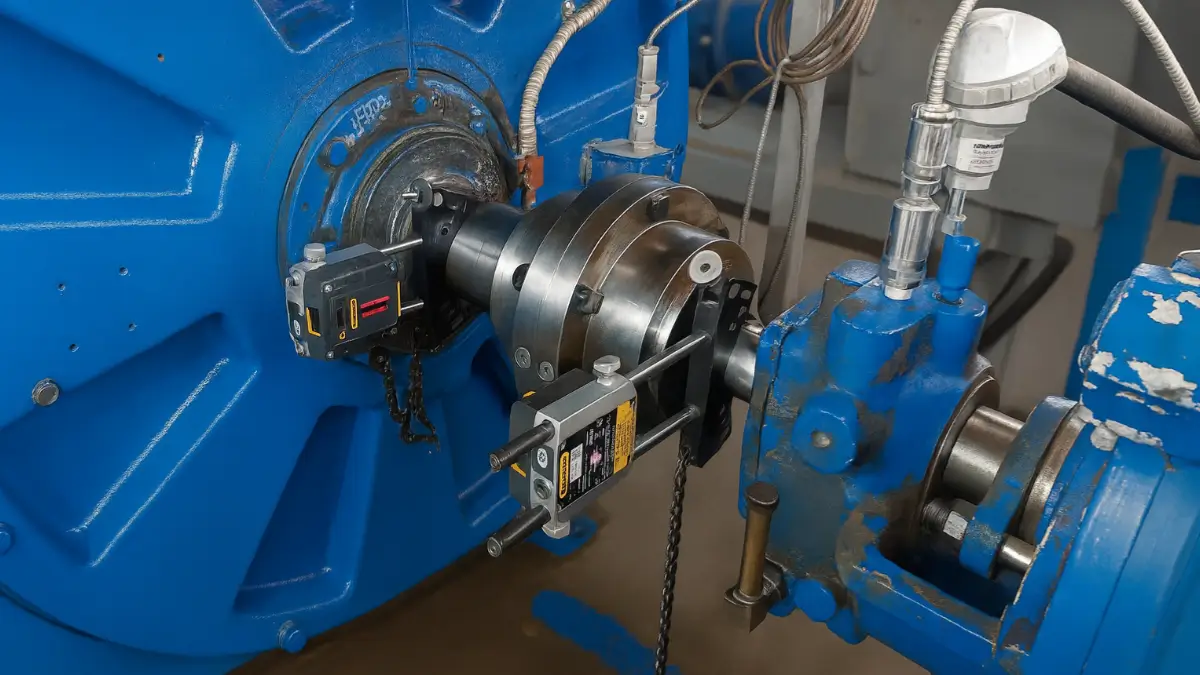

This image represents industrial laser shaft alignment performed on pumps & motor in  a UAE facilities.

2. Industries Benefiting from Laser Shaft Alignment in UAE

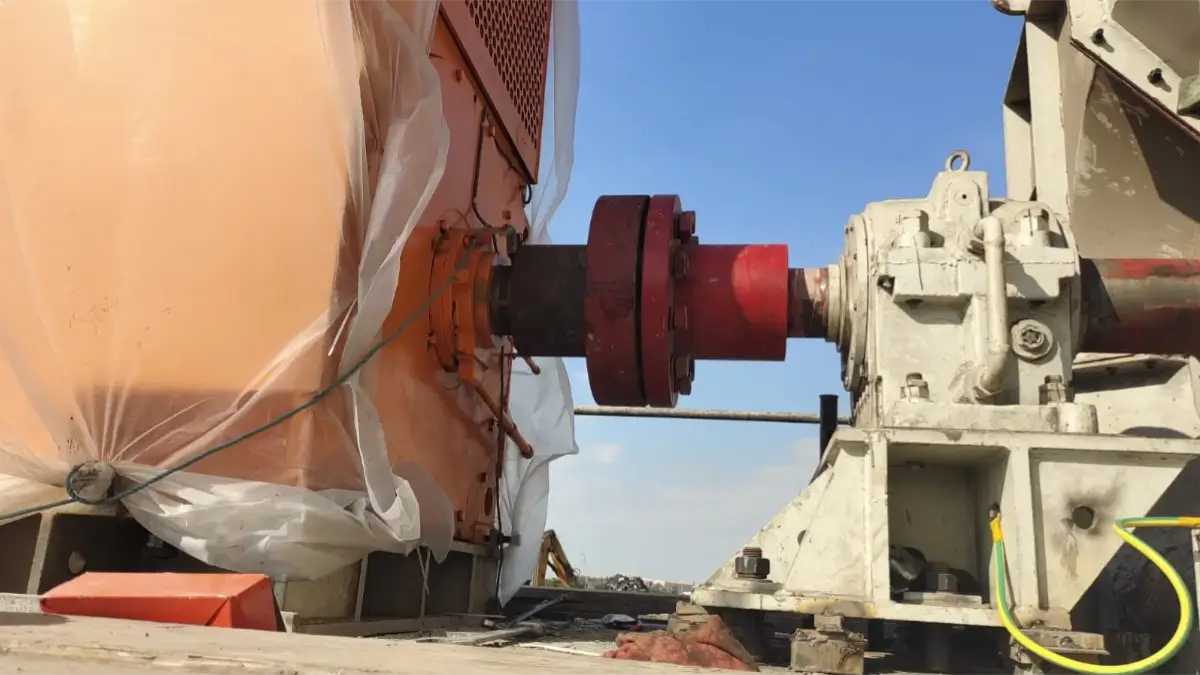

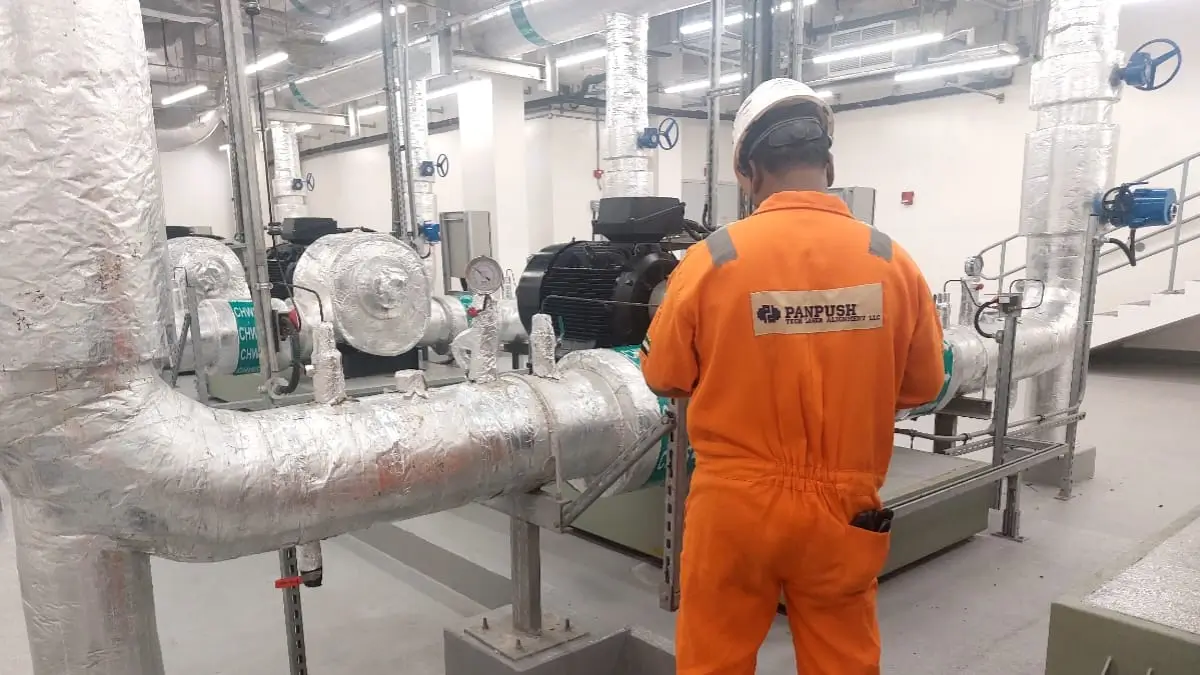

This image highlights laser shaft alignment applications across UAE industries, including oil and gas facilities, manufacturing plants, power generation units, and heavy industrial machinery. Precision laser shaft alignment improves equipment reliability, reduces vibration, lowers energy consumption, and extends the life of pumps, motors, compressors, and gearboxes operating under demanding UAE conditions.

Our Laser Alignment Services Include:

# Annual laser alignment maintenance contracts.    # Six months’ laser alignment maintenance contracts.
# Emergency and urgent laser alignment services. # Laser alignment for new installations.
# Laser alignment of existing running machines.    # Laser alignment measurement and condition checks.
# Laser shaft alignment audit report.

1. OIL & GAS
2. MARINE & SHPPING, VESSEL
3. POWER PLANT
4. CEMENT PRODUCTION FACTORY
5. GAS PRODUCTION FACTORUY
6. CHEMICAL PRODUCTION FACTORY
7. MANUFACTURING FACILITY
8. WATER PUMPING STATION
9.  MALLS: Chiller pump-Motor
10. FAHU & AHU
11. Manufacturing & Heavy Industry
12. Wind Energy
13. HVAC & Cooling Systems
14. FEWA & DEWA: Pump to Motor
15. MILITARY APPLIANCES
16. BOOSTER STATION
17. CHILLER PUMP
18. INDUSTRIAL PRODUCTION FACILITY
19. PUMP, ENGINE, COMPRESSOR, MOTOR: supplier company
20. ELECTRICITY & WATER: gov facility

We can serve the laser shaft alignment in the diffrent types.

• Horizontal motor alignment
• Vertical motor alignment
• Machine train

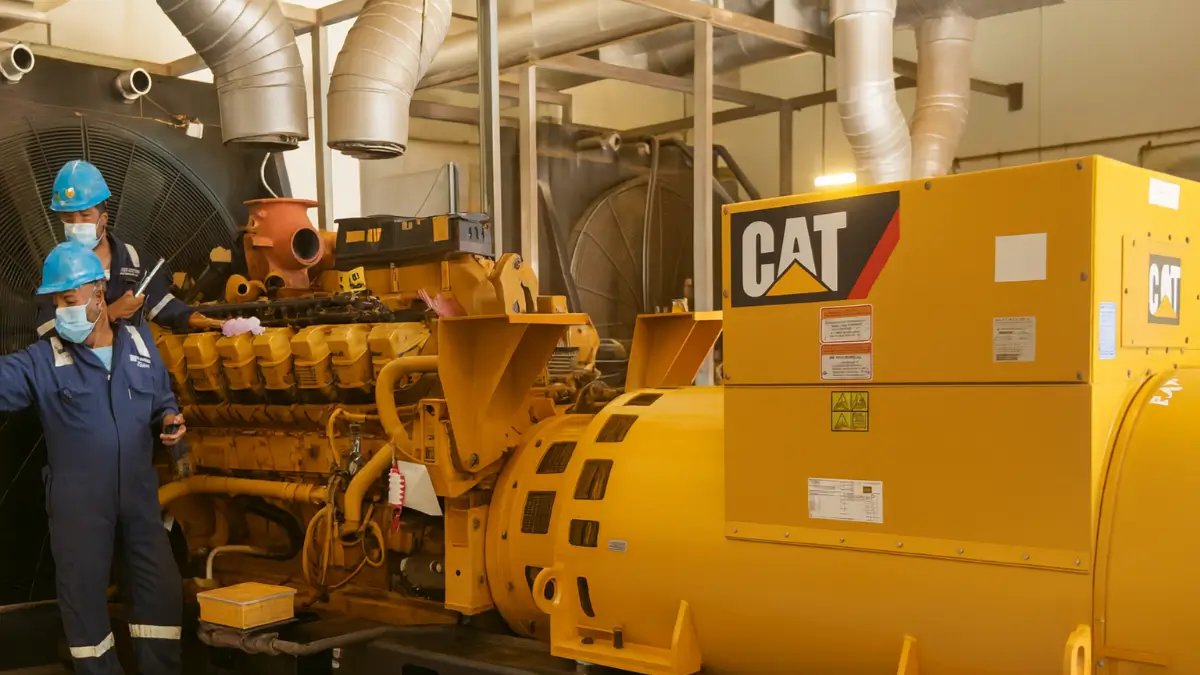

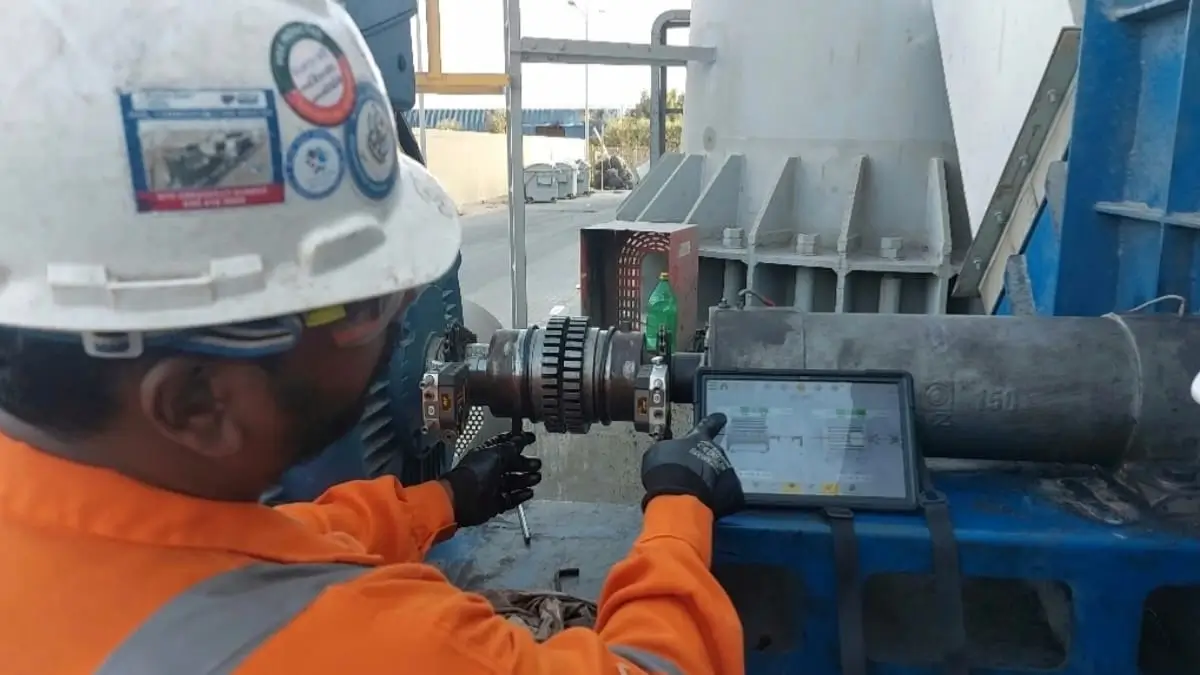

This image shows laser shaft alignment carried out on a CAT engine and alternator set in a UAE  industrial facility. Accurate laser shaft alignment ensures proper coupling alignment between the engine and alternator, reducing vibration, preventing bearing and coupling failures, improving fuel efficiency, and maintaining stable power output under continuous operating conditions.

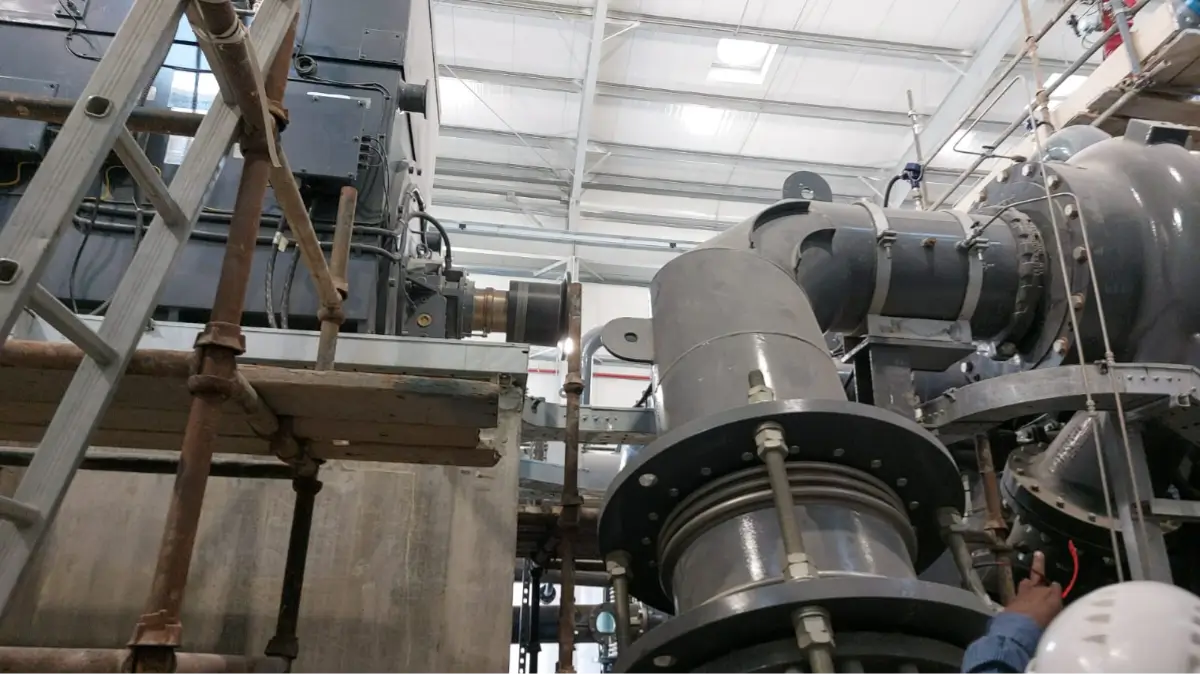

This image shows laser shaft alignment carried out during the new installation of a 14-ton motor coupled to a compressor at a gas plant in Dubai, UAE. For this new installation alignment was conducted twice, once before concreating (anger bolts), once after concreating (anger bolts). And the alignment was performed considering thermal expansion, using the thermal expansion values provided by the supplier.

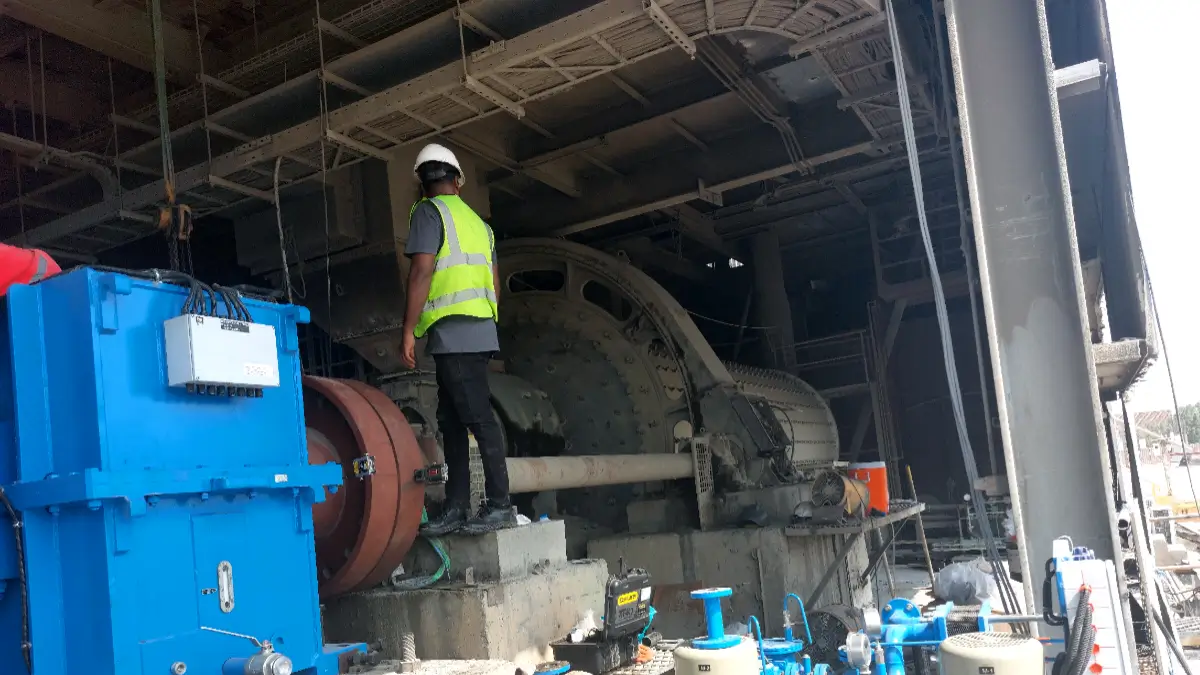

This image shows the ball mill gearbox, main drive motor, and auxiliary unit inside a cement manufacturing plant in Abu Dhabi, UAE. We conduct precision laser alignment (machine train) for these rotating machines to ensure smooth operation, reduced vibration, and extended equipment lifespan. Laser alignment is essential for heavy-duty applications like ball mills to prevent premature bearing, coupling, and gearbox failures while improving overall plant reliability and efficiency.

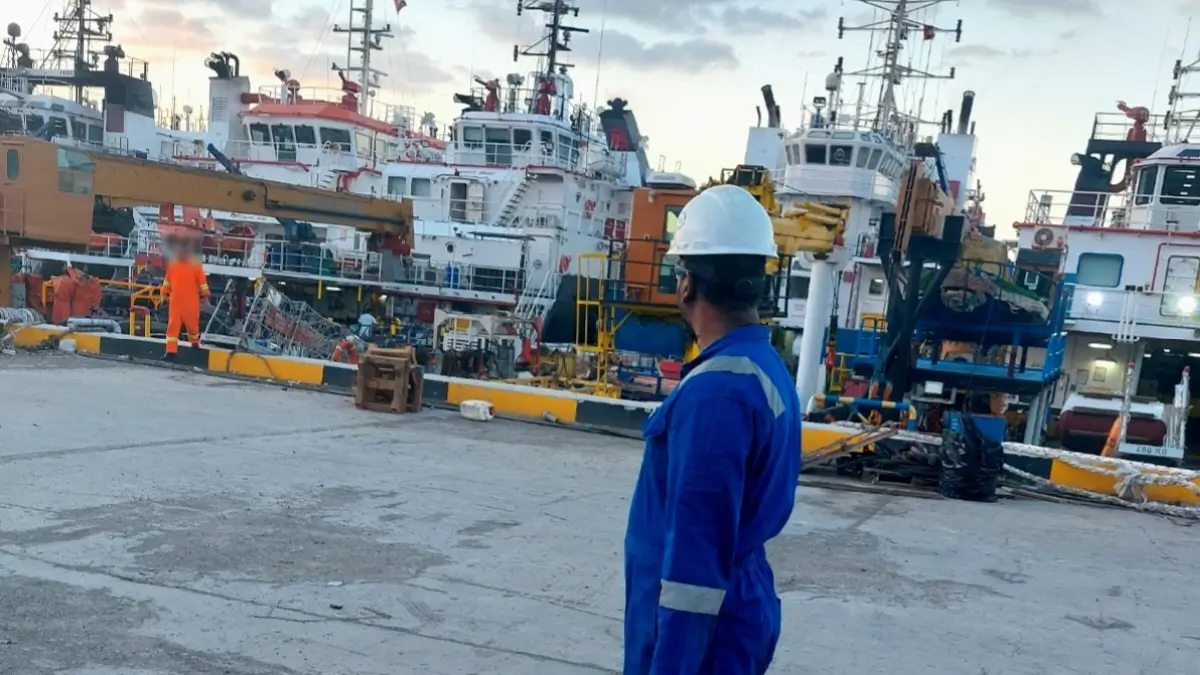

This image shows laser shaft alignment being carried out by a certified Panpush engineer on marine vessel equipment at a UAE port. Precision laser shaft alignment in port and marine environments ensures accurate alignment of propulsion systems, pumps, and auxiliary machinery, reducing vibration, preventing premature component failure, improving fuel efficiency, and supporting reliable vessel operations under demanding marine conditions.

3.What is Laser Shaft Alignment?

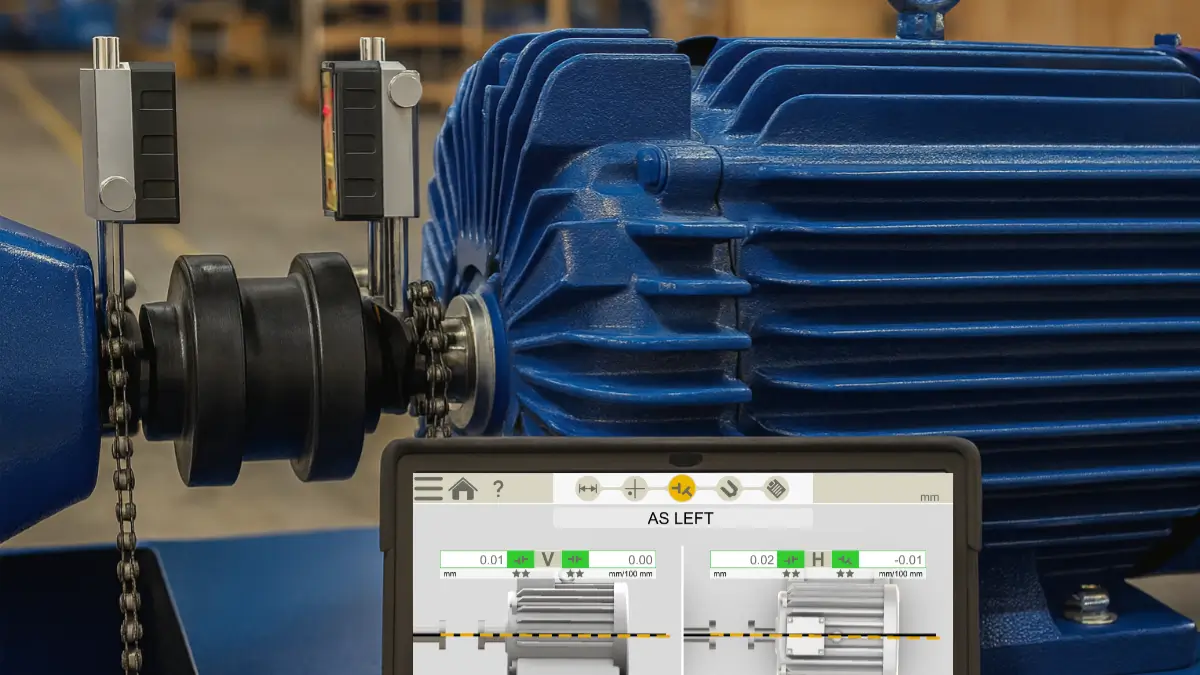

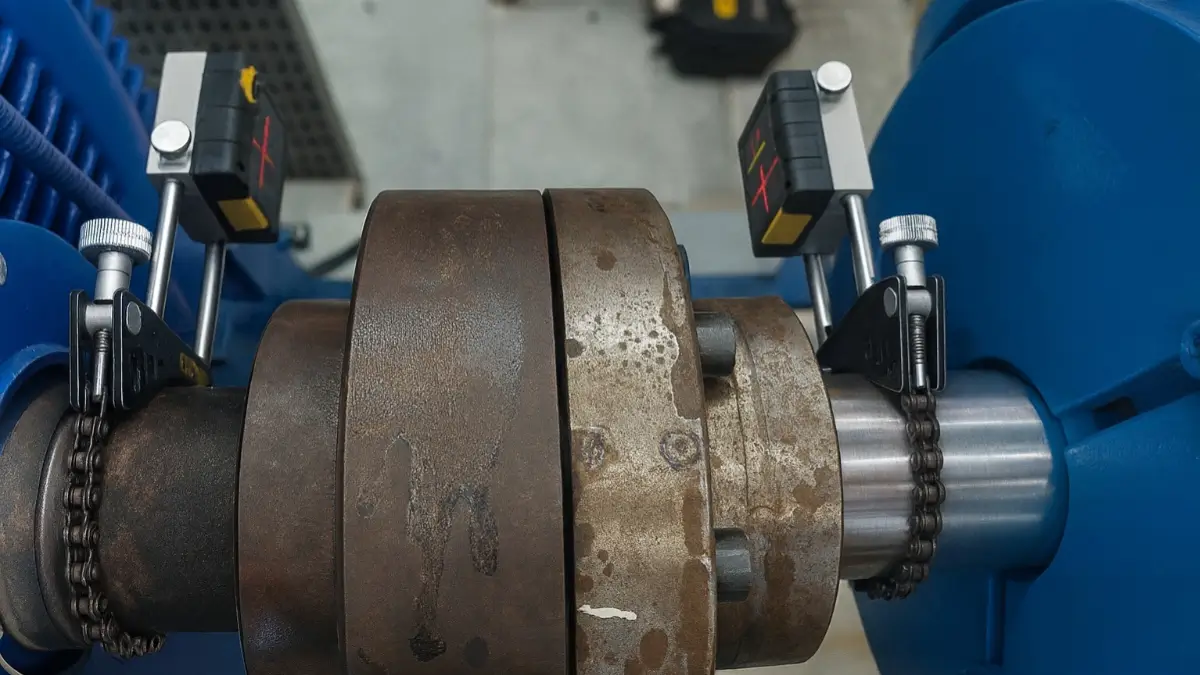

This image represents a laser shaft alignment setup used for pump shaft and motor shaft, typically found in one of UAE oil and gas operations. This image represents a generic industrial equipment and it provides a visual representation of the alignment task conducted on pumps and motors in the oil and gas industry.

Laser shaft alignment is an advanced precision technique to align two or more rotating shafts precisely for industrial machinery such as motors, pumps, engines. When compared to traditional alignment methods, traditional method may involve guesswork, but the laser alignment uses the laser beam (single & dual laser beam, detector) and sensor technology to measure the misalignment and we can correct the misalignments in real time. By projecting a laser beam onto a sensor that was fixed in targeted machine shaft, this system detects even the slightest deviations in machinery components (in MM, inches, thou, etc.). This will helping to prevent costly wear, energy loss, and unplanned downtime. Laser alignment commonly used who needs precision and the precision is used in all automated industries such as manufacturing, powerplant, oil & gas, automotive, pumping station, military and aerospace, etc. It ensures that rotating machineries operate at peak efficiency and extending their lifespan and reducing maintenance costs. This laser alignment process is faster, more reliable, and more precise than traditional or dial gauge methods. Laser offering engineers to immediate feedback to make adjustments without guessing while machines are in small time break down like a tea break, whether it’s for simple shaft alignment or complex (train alignment) multi shaft systems. Laser alignment delivers measurable improvements in productivity, safety, machines life and performance.

With our ongoing advanced laser alignment technology and the morden alignment systems now we achieve even more precise readings, get alignment report 15-30 minutes, and better user interfaces. This technology makes it easier for companies to adopt laser alignment service as part of their regular maintenance routine, even for smaller or less complex machines. By using this advanced laser systems, manufacturers can maintain a competitive edge, ensuring that their machinery runs smoothly, efficiently, and with minimal risk of unexpected breakdowns.

4. Why Laser Shaft Alignment is Critical in UAE Industries?

IN UAE industrial sites are face high operational temperatures and heavy loads. These conditions can accelerate the machine rotating shafts to misalignments, if not corrected properly.

1. High operational temperatures: In the UAE, industrial equipment is subjected to high ambient and process temperature conditions.
   In industrial equipment, thermal expansion is responsible for the movement of shafts, bases, and couplings. Laser shaft alignment compensates for these movements by maintaining proper alignment.
2. Continuous heavy-duty operation: Many UAE facilities run pumps, compressors, engine and motors 24/7 continuously without extended shutdowns or break for the rotating machines.
   Even small shaft misalignment during continuous operation rapidly damages the bearing, seal, and coupling and shaft. Laser shaft alignment minimizes the dynamic stress of rotating shafts and ensures long-term reliability in nonstop operations.
3. Desert conditions: The infiltration of dust and sand into the system also increases the vibration & increase friction, especially for the bearings and seals.
   If there is any misalignment happen, then the misalignment will reduce the lifespan of the equipment. Laser shaft alignment reduces vibration and imbalance, protecting the equipment in a desert environment.

Critical laser shaft alignment of motor and gearbox in a UAE cement manufacturing facility

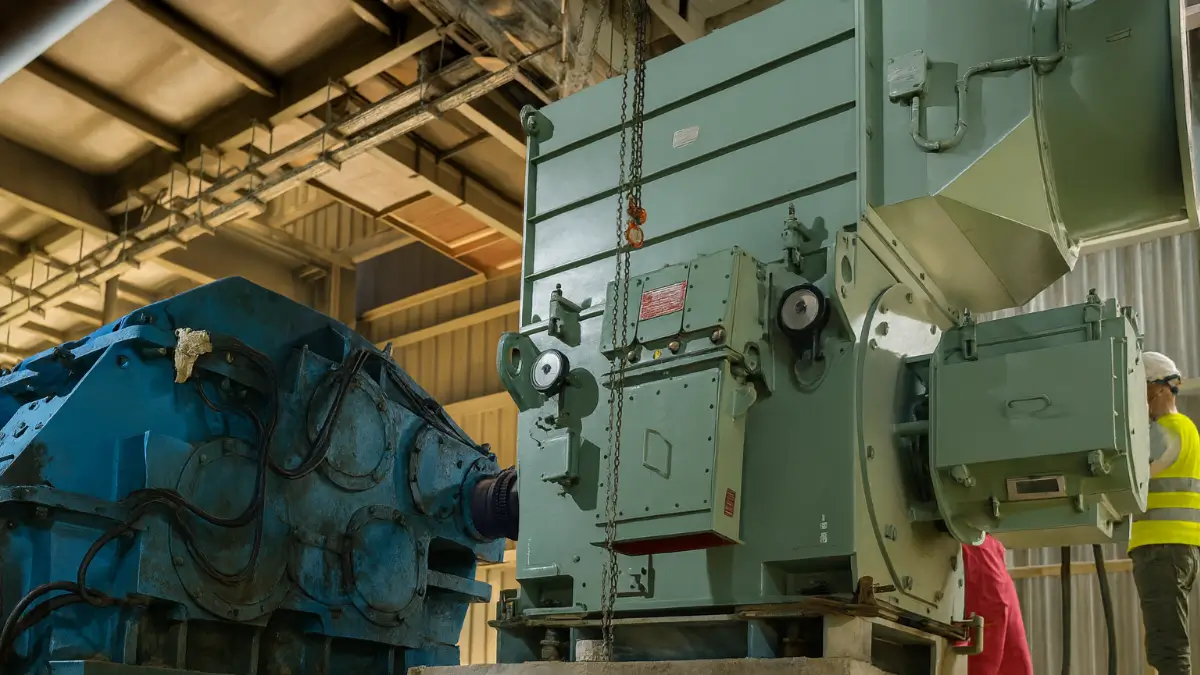

This image shows laser shaft alignment performed on a motor and gearbox assembly in a cement factory in Abu Dhabi, UAE. In heavy industrial environments such as cement plants, precise laser shaft alignment is critical to handle high loads, continuous operation, and hard conditions. Proper alignment reduces excessive vibration, prevents gearbox and bearing failures, improves power transmission efficiency, and ensures reliable long-term operation of rotating equipment across UAE industrial facilities.

If two rotating machines are continuously running in misaligned condition, they are likely to produce excessive noise, vibration, and lower production rates, and they will also consume more energy. However, prolonged misalignment also increases the chances of damage to the coupling and complete coupling failure. On the other hand, laser alignment helps reduce vibration, seal damage, bearing life, and energy consumption, among other benefits.

5. Advantages of Laser Alignment over Traditional Methods

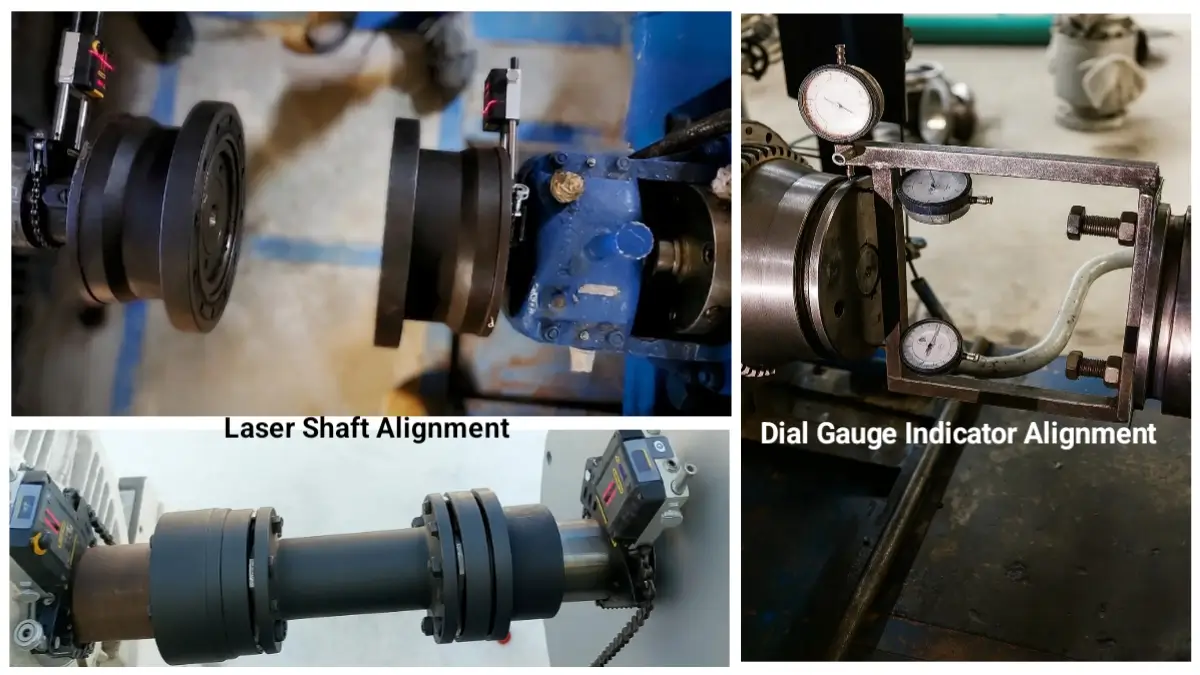

This image is a visual comparison between modern laser alignment and traditional methods like dial indicators for aligning shafts. It contributes towards the development of a concept of how the process of alignment using laser and dial gauges works in different machinery such as pumps, motors, and compressors.

Accuracy, setup time, and results are better with laser alignment compared to dial gauges. The following table displays the major differences between laser alignment and dial gauges:

The laser alignment has high accuracy up to ±0.01, ±0.001 mm with digital metric measurement. It has fast setup and measurement, which reduces downtime considerably. The values of shim and soft foot as well as automatic thermal compensation are calculated through software. For temperature related shaft movement during operation, no need to manual calculation. Laser alignment systems also provide automatic PDF documentation and reports, No need to manual notetaking. Our laser system support multi-shaft and machine-train alignment, accurately handle vertical & horizontal alignment corrections, and include soft foot detection and correction, all of which are complex or limited when using traditional alignment methods.

6. Step-by-Step Laser Shaft Alignment Procedure

The Panpush alignment workflow (used across UAE sites):

1. Preparation:
   Use the process of lockout-tagout. Clean the shafts and coupling surfaces. Also, check the machine bases, bolts, and shims.

2. Mounting:
   Mount the laser brackets or magnetic bases onto the pump shaft and the motor shaft. The laser beams should be visible on the detector.

3. System setup:
   Enter the dimensions of the shafts and the coupling distances into the system. Also, zero the system and check the alignment of the laser beams.

4. Initial measurements:
   Rotate the shafts at different angles (0°, 90°, 180°(-90°) in order to obtain accurate alignment information.

5. Analyze data:
   The software will automatically calculate the vertical and horizontal angular and offset misalignments and provide the correction values with the tolerance.

6. Correct:
   The vertical corrections will be achieved by adding shims to the machine, and the horizontal corrections will be achieved by moving the machine base.

7. Verify & document:
   The bolts will be retightened with torque wrench, and a new alignment report will be created showing the results before and after the alignment.

8. Restart & monitor:
   Restart the machine and monitor vibration, noise, and operating performance to confirm successful alignment.

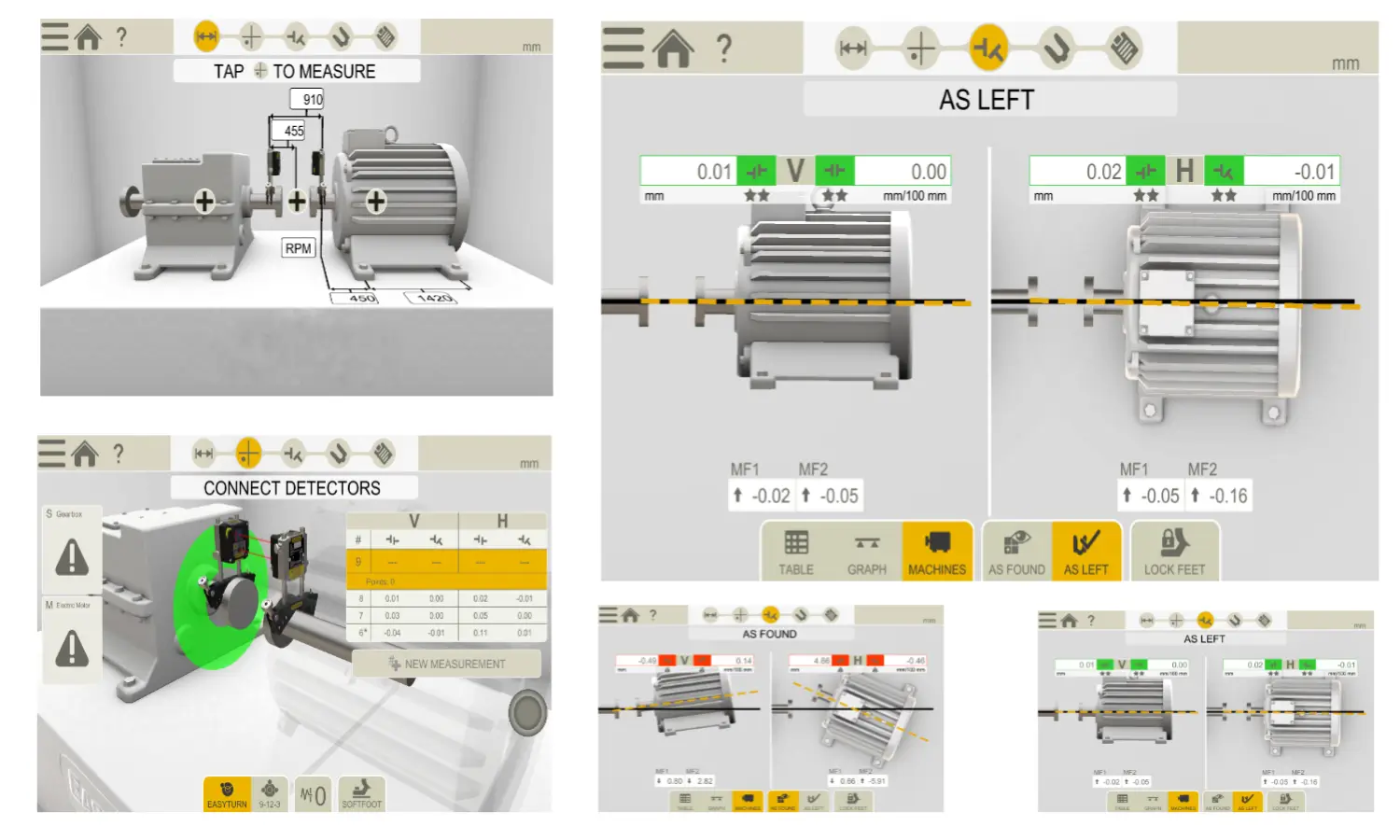

This is an image showing a step-by-step laser alignment process as it is shown in alignment software, showing results both before and after alignment tolerance. This visual guide helps machine technicians to take correct measurements, make corrections, and align the machine within tolerance limits. The software based laser shaft alignment is accurate, efficient, and provides results.

7. Types of Shaft Misalignment

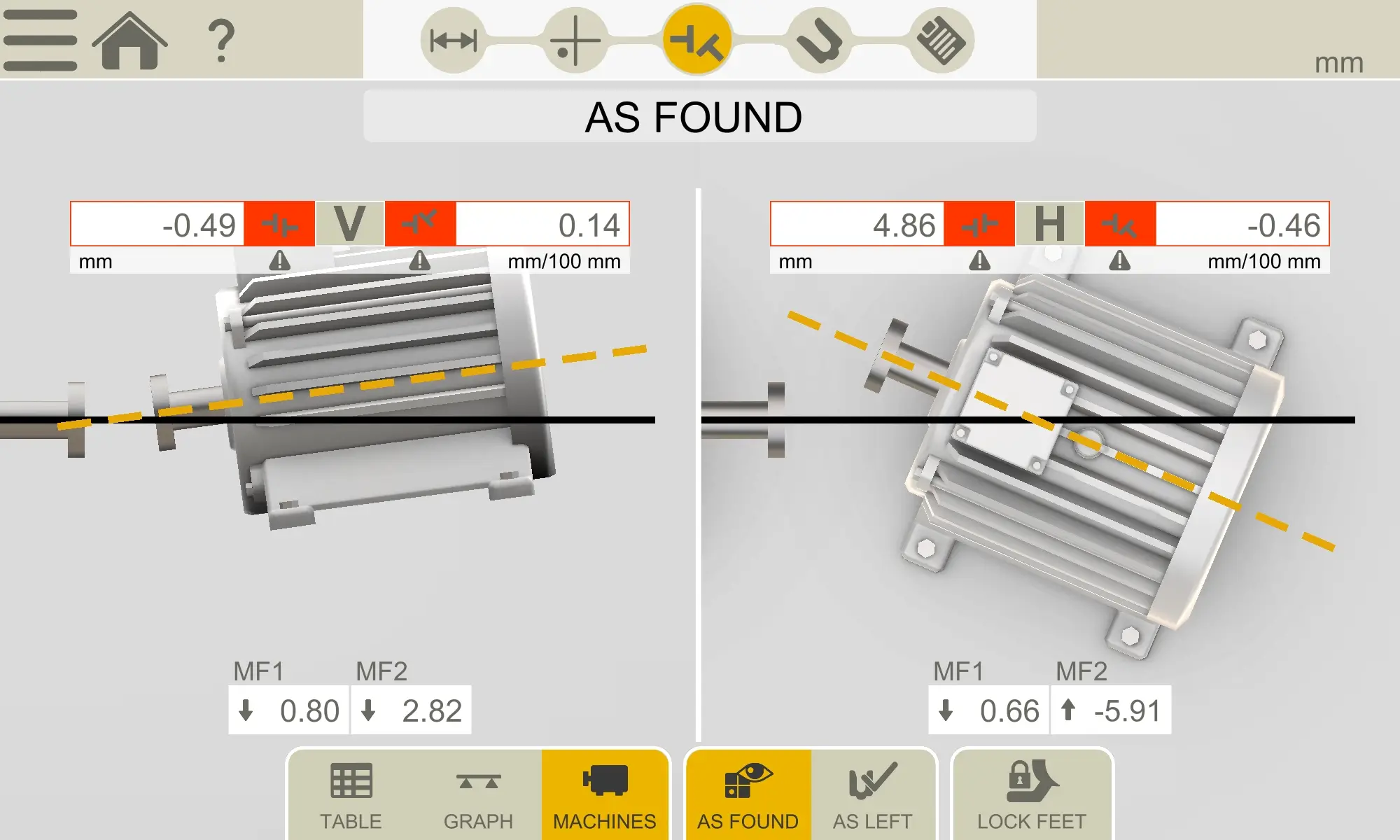

This diagram illustrates the difference between angular misalignment and offset (parallel) misalignment commonly found in pumps, motors, and industrial rotating machinery. The image visually explains & helping technicians to understand alignment errors before performing laser shaft alignment, how each misalignment type affects the shaft centerlines.

Shaft misalignment appears in three main forms, each affecting machinery performance in different ways:

1.Angular misalignment:
This occurs when the shaft centerlines intersect at an angle instead of being parallel. It can be in the form of vertical angular misalignment (difference in shaft angles when looking at the shafts from the side) or horizontal angular misalignment (difference in angles when looking at the shafts from the top). Angular misalignment can result in increased axial forces, bearing wear, as well as fast coupling damage.

2.Offset (parallel) misalignment:
Offset misalignment happens when the shafts are parallel but their centerlines do not line up. It is divided into vertical offset (one shaft higher or lower than the other) and horizontal offset (shafts shifted sideways). This type causes continuous radial (offset or parallel) loading, leading to vibration, seal failure, and higher energy consumption.

3.Combination misalignment:
This type of misalignment is the most common in realworld laser alignment & machine applications. Combination misalignment has both angular and offset errors. Most machines will have a combination of errors, i.e., angular and offset errors, when they leave the installation or maintenance site if the errors are not corrected using a laser alignment method. Combination errors will have the highest levels of vibration and require correcting the angle and offset errors in the vertical and horizontal planes of the motor.

8.Laser Shaft Alignment Tools & Technology

Panpush currently uses Easy-Laser XT series (XT440) for our laser alignment services. This Modern tools include wireless units, dual-laser measurement, thermal compensation, and automatic reporting Display unit.

This image showcases the one of our laser alignment tools used for laser shaft alignment services provided by Panpush Laser Alignment in the UAE. Our advanced laser equipment ensures accurate and efficient alignment for machinery across various industries.

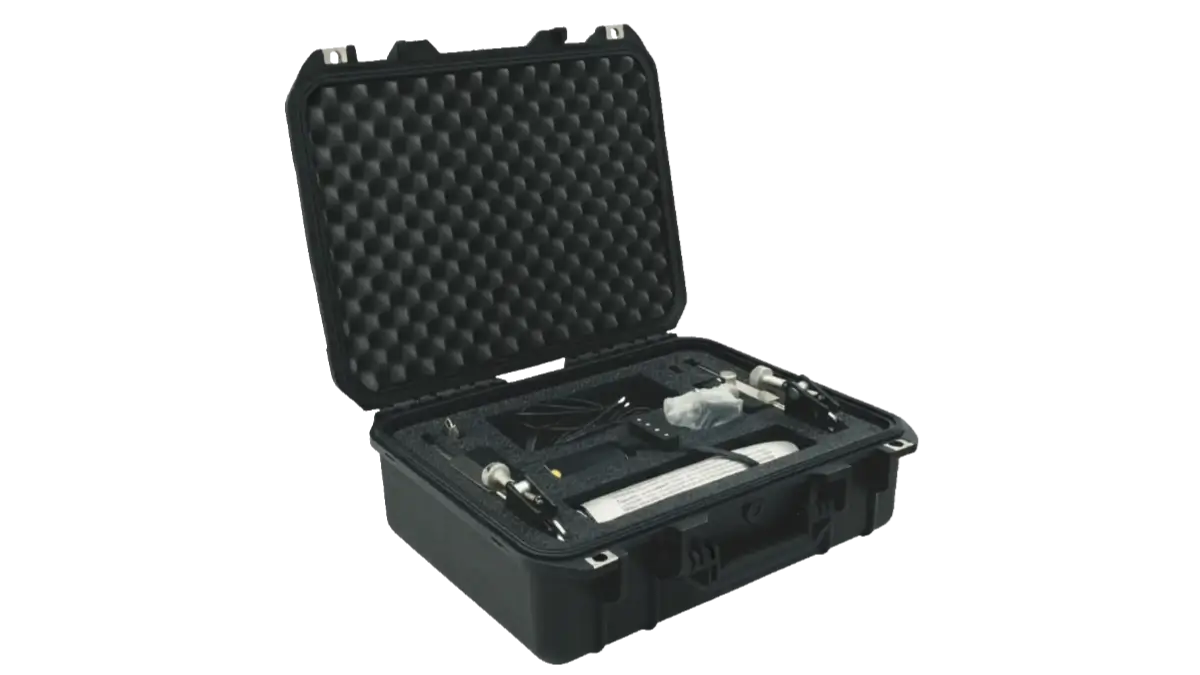

This image showcases the one of our high precision Easy Laser XT440 professional laser alignment system used for accurate shaft alignment in industrial machinery. This system helps technicians measure angular and offset misalignment with high precision, ensuring reliability, reduced vibration, and optimal machine performance. The system is ideal for pump, motor, compressor, and industrial rotating equipment’s.

Key components include:

• • Laser emitter & detector units: mount on each shaft for precise readings.
  • Brackets, chains & magnetic bases: universal fixtures to suit many shaft types.
  • Display unit & software: guides technicians, calculates corrections, and generates reports.

• Laser Shaft alignment measures and corrects the centerlines of rotating shafts with micrometer-level precision. Unlike traditional methods involving dial indicators, laser alignment offers automatic thermal compensation and digital display. Laser Alignment is applied in precise tasks in the Oil & Gas industry, vessels, power plants, cement manufacturing units, gas plants, military uses.

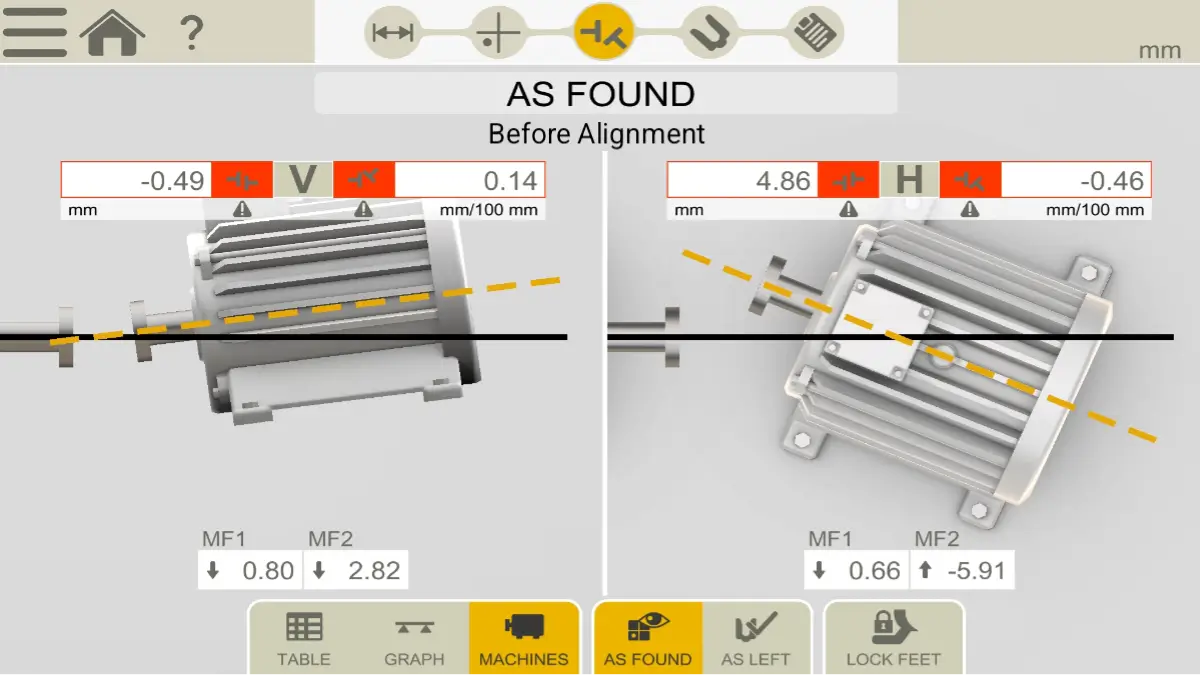

The image represents the before alignment tolerance measurement stage of a laser shaft alignment case study provided by Panpush Laser Alignment Company based in the UAE. This alignment check is important to obtain initial misalignment values from coupled or uncoupled rotating machinery before making any corrective actions. This is an important stage in the process of laser shaft alignment to determine any angular and offset misalignments and to ensure that the machinery is properly aligned to the required tolerance by ISO, OEM, and Panpush standards. This stage is important to determine the vertical offset and angle, horizontal offset and angle, and other machinery.

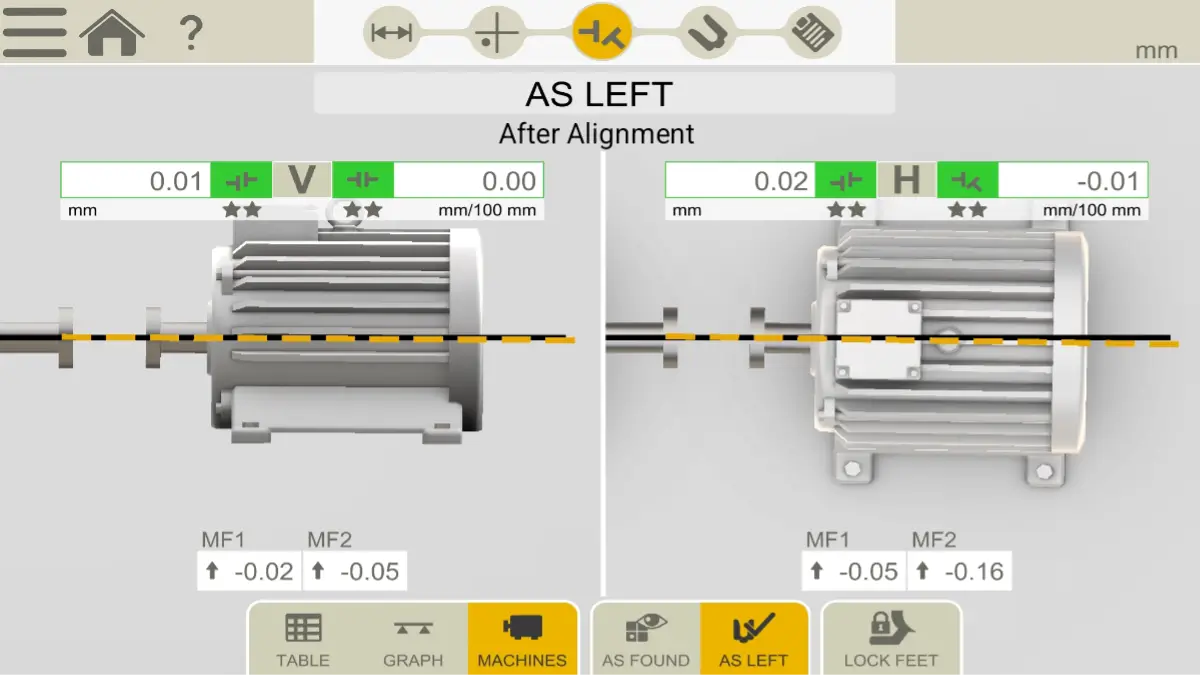

This image is the after alignment of the laser shaft alignment tolerance measurement report, which is based on the case study of Panpush Laser Alignment in the UAE. This shows that the values of the angular misalignment and offset misalignment have been corrected and are within the ISO, OEM & Panpush standard tolerance limits after alignment. Final alignment verification is an important part of the laser shaft alignment process, ensuring reduced vibration, increased coupling and bearing life, optimized energy efficiency, and long-term operation of rotating machinery.

Client:  Gas Plant, Abu Dhabi. Challenge: High vibration, premature bearing wear.  Solution:  We conduct laser shaft alignment with Easy-Laser XT440 deployed for precise alignment.

• Vibration reduced by 70%
• Energy consumption reduced by 12%
• Maintenance intervals extended by 6 months

Client: Cement production factory, Abu Dhabi.    Challenge: Remove existing machines & install new machines such as motor, gear box,  auxillary unit).  Solution:Panpush Laser Team deployed for precise alignment.

• Vibration reduced by 70%
• Energy consumption lowered by 12%
• Maintenance intervals extended by 6 months

Client: Malls in Sharjah. Challenge: Remove existing machines & install new machines for chilled water pumps.  Solution: Panpush team deployed for precise alignment.

• Vibration reduced by 70%
• Energy consumption lowered by 12%
• Maintenance intervals extended by 6 months

Client: Power Plant, Jebel Ali. Challenge: Remove existing pump, Motor & install after overhauling with laser alignment. Solution: Panpush team deployed for precise alignment.

• Vibration reduced by 70%
• Energy consumption lowered by 12%
• New Pump & Motor installed & alignment was completed.
• Maintenance intervals extended by 6 months.

Client: Hospitals, Dubai.

•    Challenge: Vibration. Solution: Easy-Laser XT440 deployed for precise alignment.
• • Vibration reduced by 70%
  • Energy consumption lowered by 12%
  • Maintenance intervals extended by 6 months

10. Benefits of Professional Laser Shaft Alignment

1. Improved Equipment Reliability – avoid unexpected failures & break down.
2. Extended Bearing & Seal Life – reduce repair costs.
3. Energy Efficiency – lower friction and power draw.
4. Time Savings – faster than dial gauges .
5. Documentation – fully system Auto generated  PDF reports for audits.
6. Multi-Machine &train – align complex machine trains efficiently.
7. Reduced Vibration – improves stability
8. Lower Noise – quieter operation
9. Less Heat – prevents overheating
10. Longer Coupling Life – less wear
11. Better Performance – smoother, more efficient operation
